Cup Pulls

GR.5905 / H

This classic MWE shell handle is suitable for glass door leaves with a thickness of 8-12 mm and is also ideal for installation on wooden door leaves with a thickness of 15-80 mm.

• Glass thickness: 8-12 mm
• Glass hole diameter: 40 mm
• Outer diameter: 59 mm

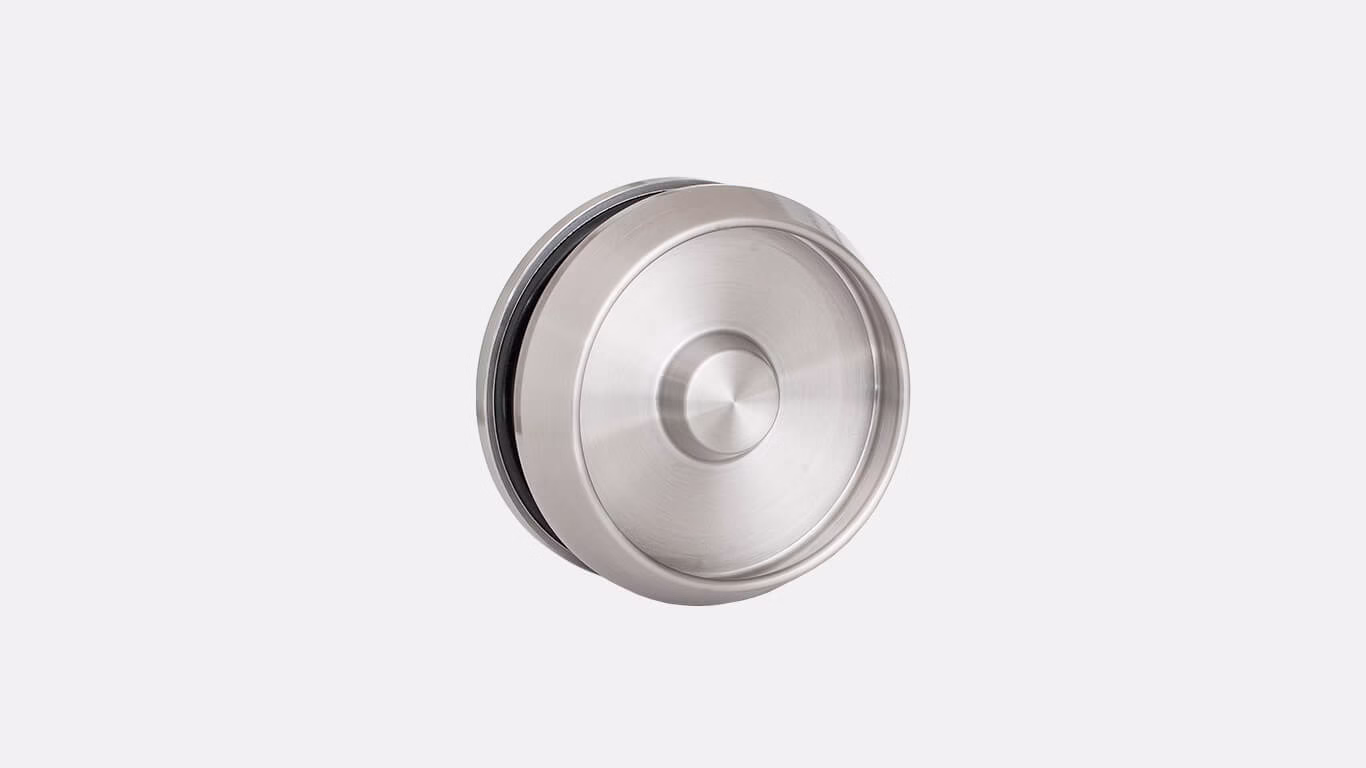

GR.5948

This attractive and comfortable handle shell made of solid stainless steel for sliding glass doors is available in two combinations.
The standard version consists of a 13 mm thick outer shell and a 9 mm thin inner shell. This allows the door to be installed close to the wall, with a small wall clearance possible depending on the baseboard or frame.
If you prefer the same generous size on both sides, choose the version with two 13 mm thick shell halves on the front and back.

• Handle outer diameter: 59.0 mm
• Door leaf thickness: 8.0 mm glass
• Glass hole: 16.0 mm

GR.6090

This handle shell has a diameter of 60 mm and its straight profile gives it a particularly pure and elegant look. It is ideal for wooden doors, where it can be glued on or flush-mounted. It can also be attached to glass.

• Mounting: glued
• Depth: 7/12 mm
• Inner diameter: 51 mm

GR.3226

With a grip depth of ~8 mm, the GR.3226 is particularly comfortable to use. Its special feature is its flush mounting on one side using a countersunk bracket. This shell handle is a treat for the hand and the eye.

• Glass thickness: 8–12 mm
• Glass countersink diameter: 32×26 mm
• Shell handle for glass and wooden doors

GR.5908

This shell handle is suitable for glass door leaves with a thickness of 8-12 mm. The front resembles the GR.5905, but the back is slimmer and therefore ideal for very small wall clearances. The shell handle only adds 3.5 mm at this point.

• Glass thickness: 8-12 mm
• Depth: 11/4 mm
• Inner diameter: 30 mm

GR.5941

The GR.5941 is more of a grip ring than a shell. It elegantly encloses the 40 mm glass hole designed as a through-hole and connects with the door leaf to create a functional and visual delight.

• Outer diameter: 59 mm
• Glass thickness: 8-12 mm
• Glass hole diameter: 50 mm

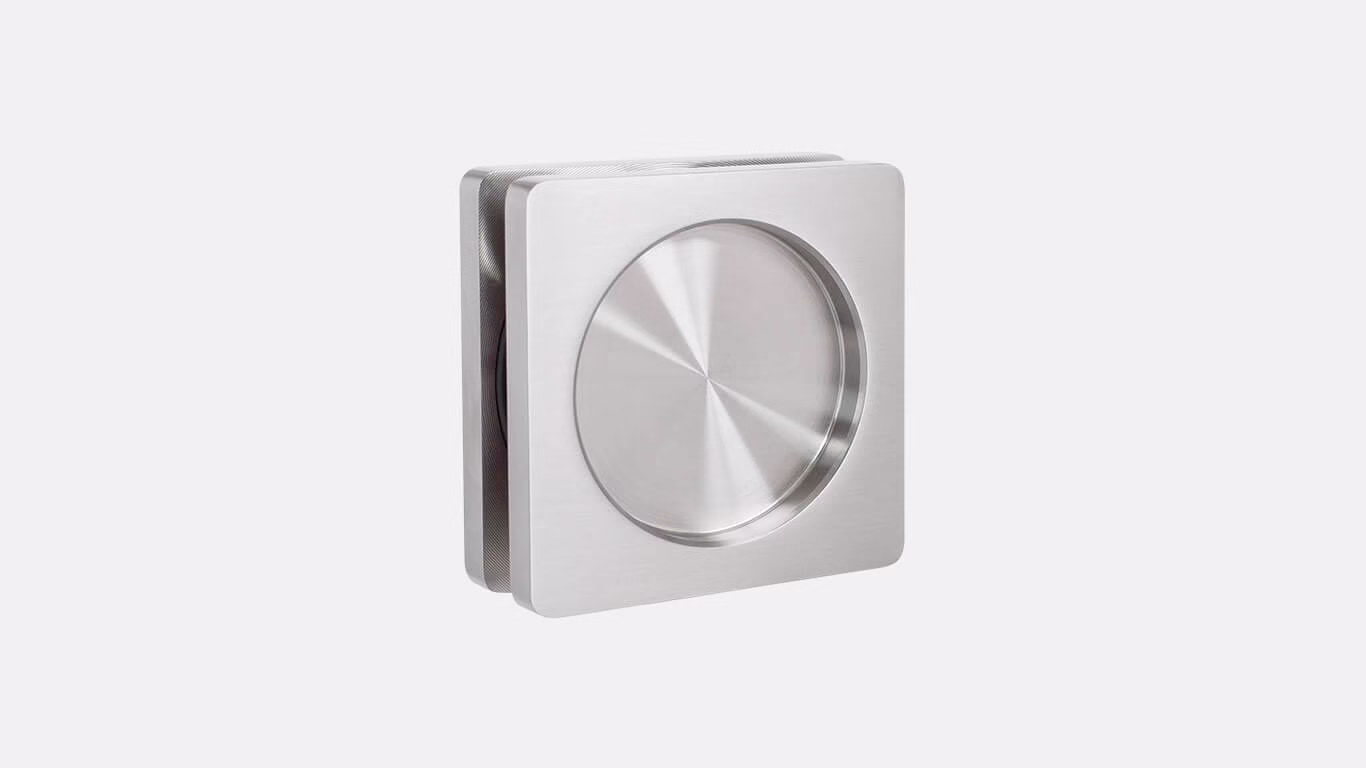

GR.6600

“The round must fit into the square,” at least with this handle shell variant. Model GR.6600 is also suitable for glass and wooden doors and can be installed flush with the wooden door leaf.

• External dimensions: 60×60 mm
• Glass thickness: 8-12 mm
• Glass hole diameter: 40 mm

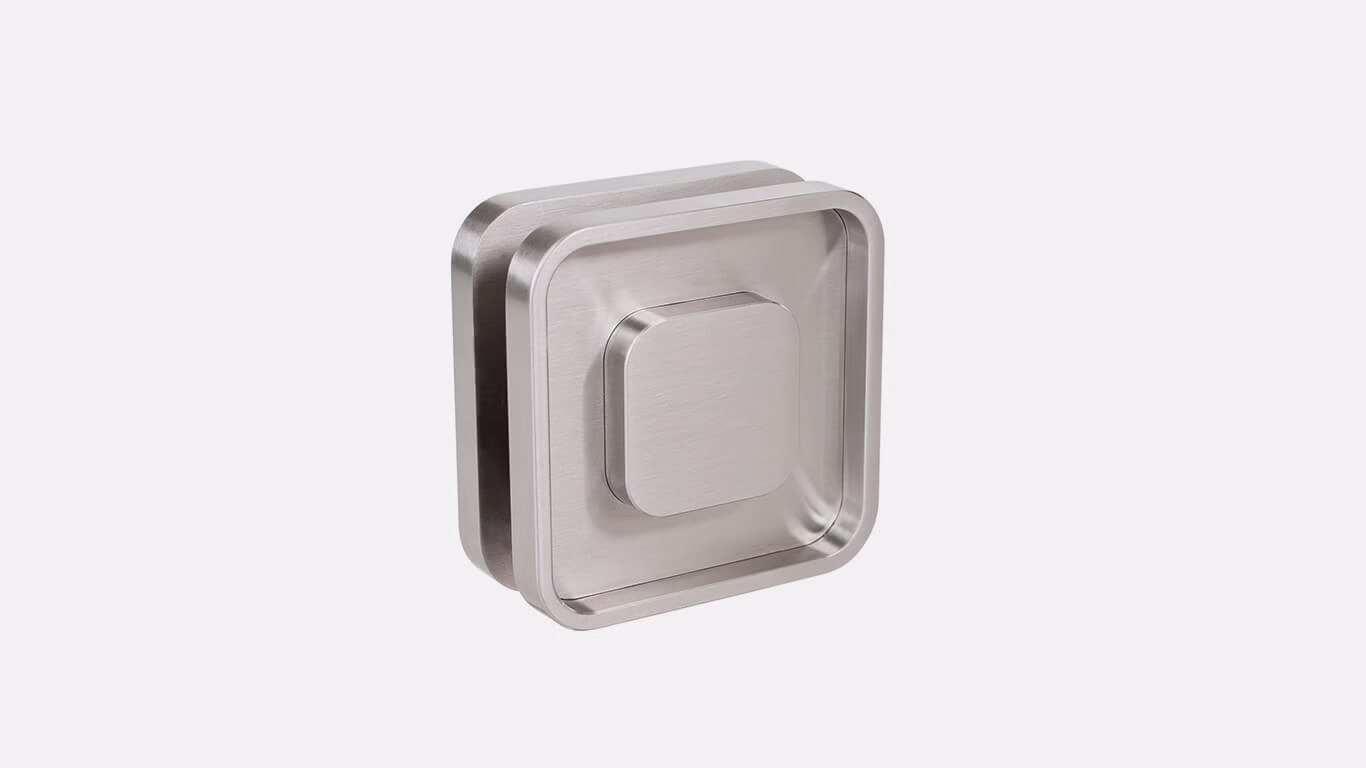

GR.6605 / H

The redesign of the GR.6605 shell handle has not only modified the design, but also the technology. As with the GR.5948, the two shell handle halves are available in different thicknesses that can be combined with each other. This perfectly shaped model is used for glass and wooden doors.

• External dimensions: 60 x 60 mm
• Glass thickness: 8-12 mm
• Glass hole diameter: 16 mm

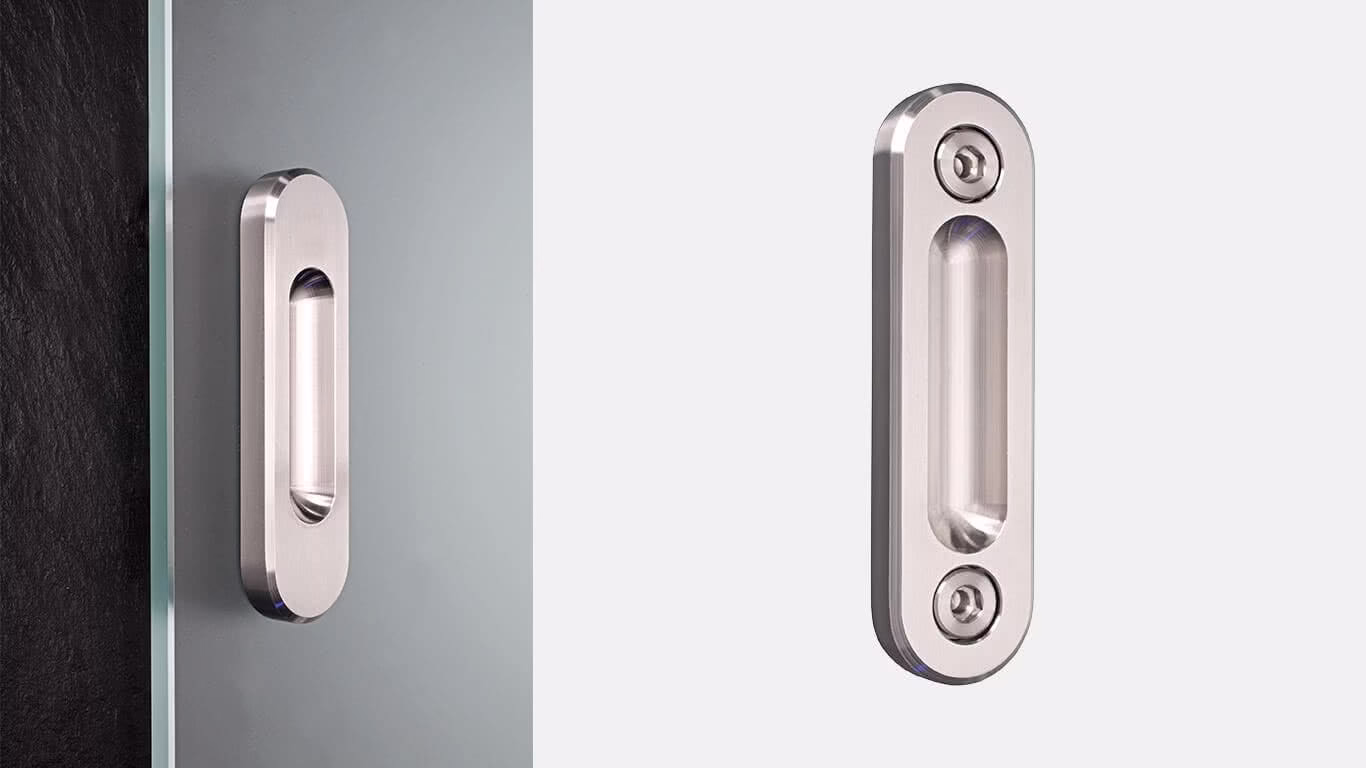

GR.8030

The GR.8030 model offers a completely new interpretation in the field of handle shells with its slim design. The design has been developed to match the ProTec, Klassik, or Supra sliding door systems.

• Glass hole diameter: 2×16 mm
• Suitable for sliding door systems: ProTec, Klassik, Supra
• Glass thickness: 8-12 mm
