Terra M – sliding door system
Starting Price:
$3,440.00
Suitable:
for glass
Effortless Elegance:
Soft Stop & Synchronization

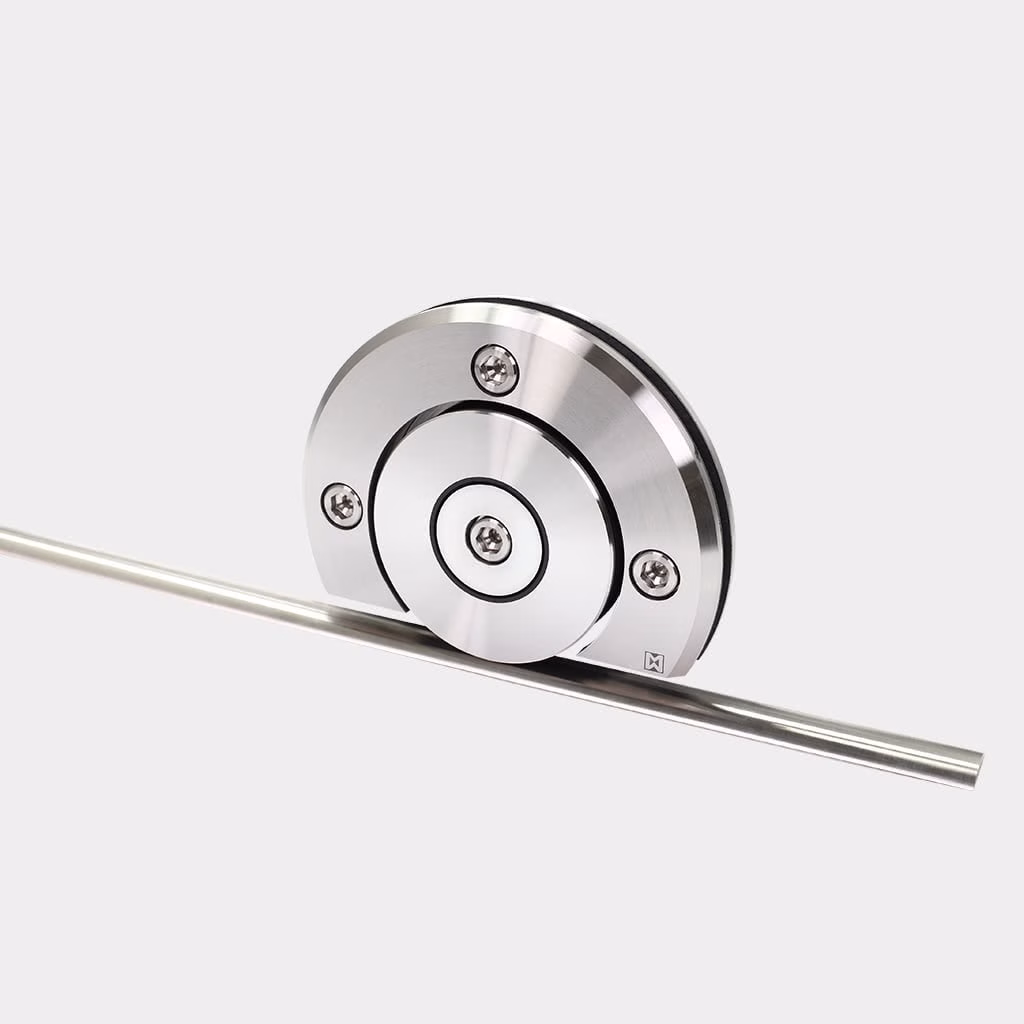

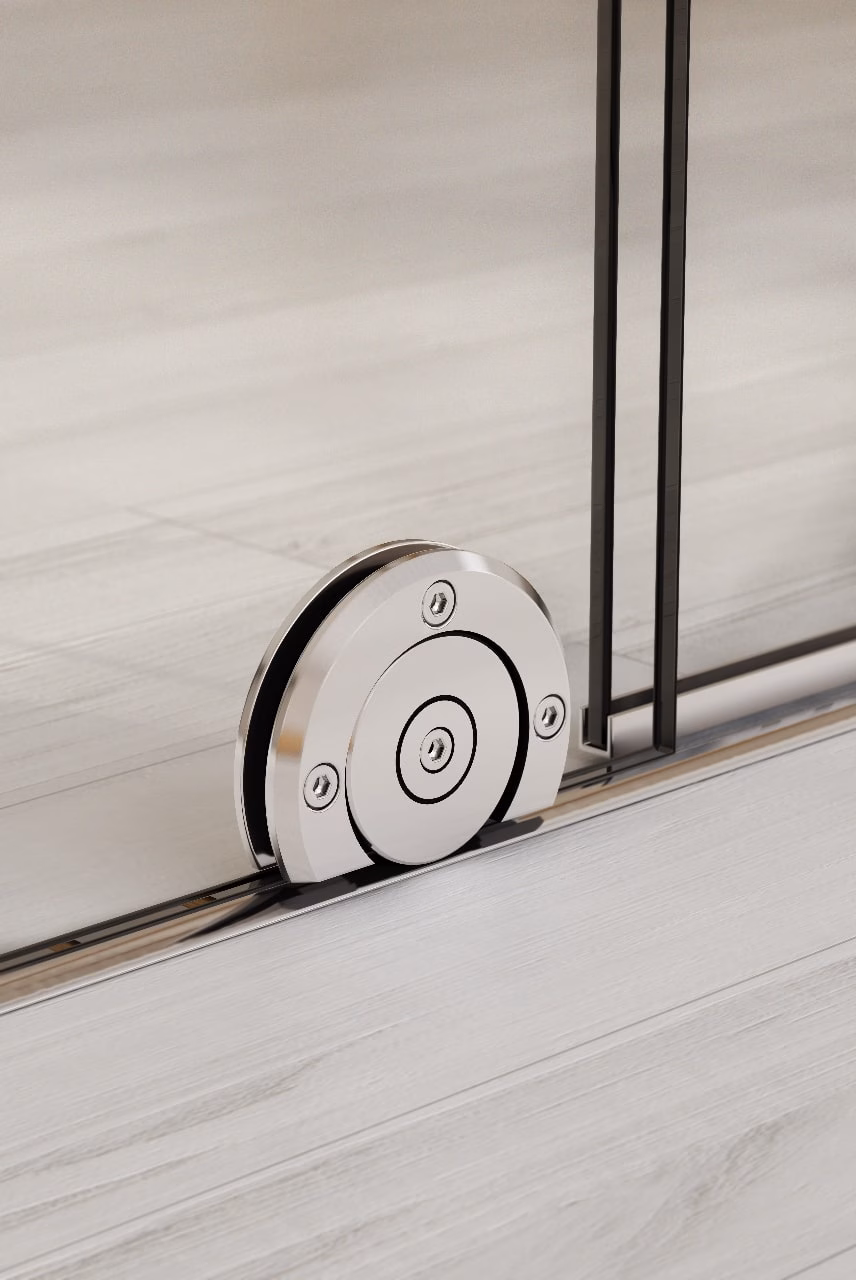

On the Terra H model, the roller mount is located in a striking, flush-mounted stainless steel wheel housing, which is inserted into the door leaf from below.
The door leaf, roller, and track appear almost flush with the surface. This fitting is also used primarily in situations where load-bearing ceilings do not allow the installation of conventional tracks.
Terra H is suitable for wooden door leaves with a thickness of 40–50 mm and a maximum weight of 135 kg. The running rail can be screwed or glued to the floor.
Flexible door leaf selection
-
Door leaf weight up to 341 Lbs
-
Floor-mounted rails
The track can be glued to the floor, screwed into the floor, or recessed into the floor as a custom-made installation. The latter option allows for a completely barrier-free design of the sliding door system.
-
Glass
with a door leaf thickness of 8–12 mm
Features
-
Soft Stop technology
MWE soft-stop technology available
-
Wall clearances
Variable wall clearances for sliding doors ranging from 29.5 to 49.5 mm
-
Height adjustment
Height adjustment of the door possible after installation
Possible surfaces
Swarovski crystal
Sandblasted
Rust
Partial polished
Polished
Brushed
24K Gold
RAL Color
Titanium
Platinum
Copper
Carbon Black
Burnished
Brass
